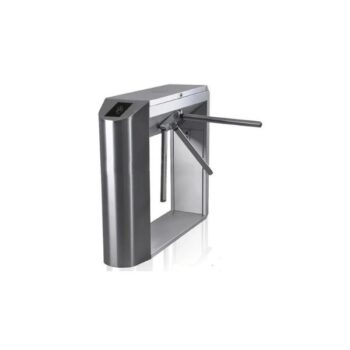

WSS-TB5M

Features

  • Semi-Auto mode
  • Pure mechanical mode
  • Single or Bi-directional function in mechanical and electrical versions
  • Automatic reset of barrier arms after each passage
  • Adjustable time out delay

Operating Mode

  • Single passage in the set direction
  • Bi-directional passage
  • Free passage in the set direction
  • Always free or locked Materials
  • Housing : SS304
  • Barrier Arms : Stainless steel
  • Lid : Stainless steel




Add to Wishlist
Add to Wishlist
Category:

Description

  • Technical Specifications

    • Passage width : 550mm
    • Throughput rate : 35 p/m
    • Power supply : 100 ~ 240V
    • Operational voltage : 24V
    • Max tolerance of Arms : 80 Kg
    • Angle per rotation : 120 °
    • Operation Type : One-way – Bidirectional
    • Input control signal : Dry contact
    • Max Power Consumption : 30 W
    • Frequency : 50 ~ 60hz
    • Protection level : IP44
    • Working temperature : -25°C ~ +70°C
    • Electro – magnetic drive : DC
    • Dimension Excluding Bar : 1200x280x980 mm
    • Net weight including bar : 52kg
    • Opening Duration : 5s – 60s
    • MCBF : 3 Million
      Can easily integrate with Rfid, Fingerprint, Face, QR code reader to give access
