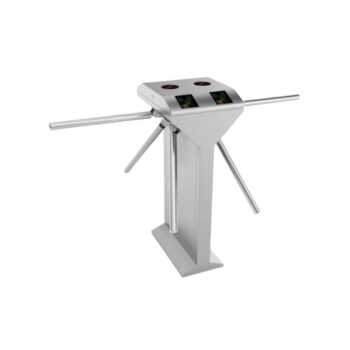

WSS-TD1

Home |
WSS-TD1

WSS-TD1

WSS-TD1

Dual Lane Turnstile

Semi-Auto mode
Pure mechanical mode
Single or Bi-directional function in mechanical and electrical versions
Automatic reset of barrier arms after each passage
Adjustable time out delay

Operating Mode

Single passage in the set direction
Bi-directional passage
Free passage in the set direction
Always free or locked Materials
Housing : SS304
Barrier Arms : Stainless steel
Lid : Stainless steel

Download Catalogue

Add to Wishlist

Category: Turnstiles

Description

Description

Passage width : 520mm
Throughput rate : 35 p/m
Power supply : 100 ~ 240V
Operational voltage : 24V
Max power consumption : 30 W
Frequency : 50 ~ 60hz
Protection level : IP44
Working temperature : -25°C ~ +70°C
Electro – magnetic drive : DC
Dimension Excluding Bar : 480x560x960mm
Net weight including bar : 65kg
