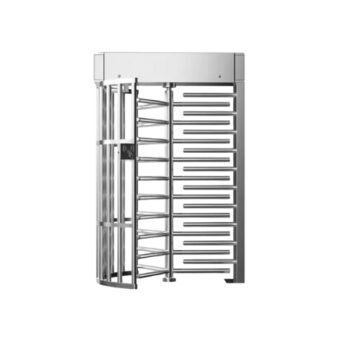

WSS-FT140B

Frame :304 Stainless Steel,
Rotation Direction : A. Bi-Directional B. In directional ,
Controller : Adopt micro-computer controller can be programmed according to customer controller can be used for other integration systems ,
Signal Source : 1. Dry contact 2. High-low-level signals.

Add to Wishlist
Add to Wishlist
Category:

Description

  • Power Supply: 100V ~ 240V AC
  • Control Circuit: 24V DC
  • Power Consumption: 30W
  • Operating Temper range: -25°c ~ +70°c
  • Protection level (IP): > 54
  • MCBF : 5 Million Cycles
  • Humidity: 95%
  • Hydraulic damper: Adjustable
  • Solenoid: 24V DC 100%
  • Throughout: Person
  • Communication Interface: RS485 or TCP IP
  • passage width :< 650mm
  • Frequency: < 50Hz or 60Hz
  • Electro -magnetic drive: DC
  • Section Version: 120 degrees
  • No of arms: 3 arms
  • Dimensions: 1630 x 1500 x2310mm
