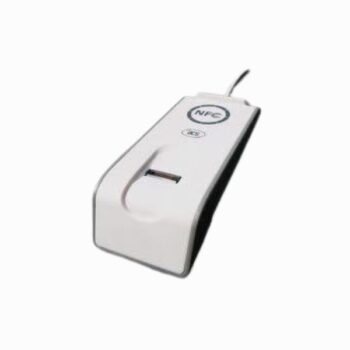

Description
AET62 elevates security and flexibility for contactless applications by:
- Three-Factor-Authentication: Requiring of a user something he has (smart card), something he knows (PIN/password) and something he is (fingerprint), before enabling any transaction
- Match-On-Device: Limiting fingerprint template extraction and matching to itself, preventing security attacks associated with PCs
- Simple Fingerprint System: Doing away with databases, servers or network connectivity. Instead, fingerprint templates are stored and encrypted in the smart card.
- Complete local-site authentication: Limiting required components for operation into three only (local PC/remote server applications, contactless smart cards, and the AET62). Thus, even developers without an in-depth knowledge of biometrics can integrate fingerprint authentication into smart card-based applications.
- Security Enhancement: Provision of an optional secure access module (SAM) and support for third-party algorithms
- Integrated fingerprint scanner and 13.56 MHz contactless (RFID/NFC) smart card reader
- Full-speed USB interface
- Encrypted fingerprint template stored inside smart card
AET62 NFC Contactless smart card reader:
- Compliant with PC/SC and CCID specifications
- Read/write speed up to 424 kbps
- Built-in antenna for contactless tag access, with reading distance of up to 30 mm (depending on tag type)
- Supports ISO 14443 Type A and B, Mifare, FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
- Supports new MiFare Ultralight C, Plus SL1 (4 Byte UID), Plus SL3, and DESFire EV1
- Supports all 3 modes of NFC: reader, card emulation and peer-to-peer
- Built-in anti-collision feature (only one tag can be accessed at any time)
- ISO 7816 Compliant SAM Slot (Upon request)
Fingerprint scanner:
- Match-on reader: Template extraction and matching algorithms run within the device itself, not in the PC (Using default fingerprint algorithm)
- UPEK TCS4-TCD50 swipe fingerprint sensor
- Swipe speed: up to 40 cm/sec (15 in/sec)
- Active sensor size: 9.6 mm x 0.2 mm
- High-resolution 508 DPI
- Array size: 192 x 4 pixels
- Supports image optimization and filtering
- Utilizes CMOS active capacitive pixel-sensing technology, resulting to high-quality fingerprint images in any environment
- Compliant with BioAPI 1.1 specification and Windows Biometric Framework
- Supports several fingerprint algorithms such as Authentec and other 3rd-Party Algorithms.
Dimensions | 121.5 mm (L) x 53.9 mm (W) x 28.4 mm (H) |
Weight | 170 g |
Interface | USB Full Speed |
Operating Distance | Up to 30 mm (depends on the tag type) |
Supply Voltage | Regulated 5V DC |
Supply Current | max. 300 mA |
Operating Temperature | 0 – 50 °C |
Smart Card Interface Support |
|
Fingerprint Sensor |
|
Compliance / Certifications |
|
Operating System Support |
|
