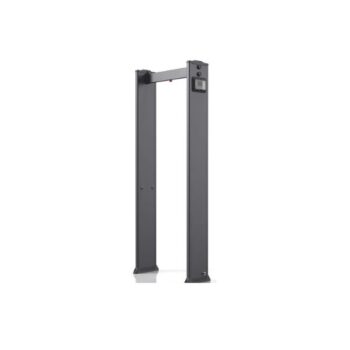

WSS D1

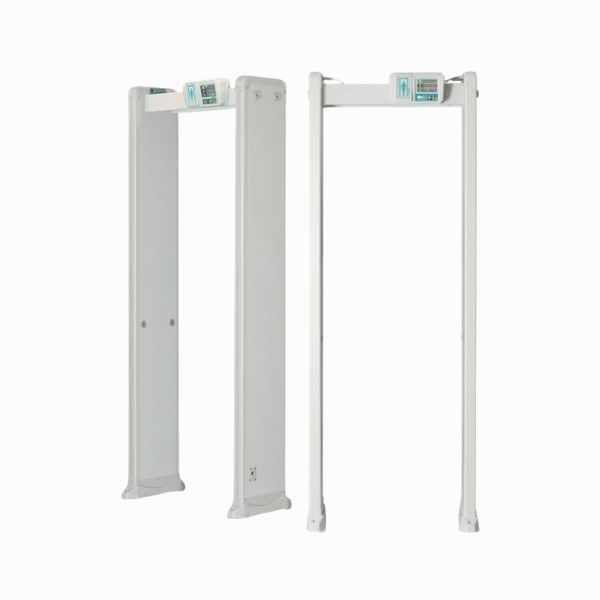

WSS D1- Single zone metal detector – Door frame metal detector

Ergonomic structure new design,
High bright new LED digital with zones display,
Detection of metal’s by glowing LED indication from top to bottom on single zone,
Easy fixing of cross beams with side door DFMD controller,
Helps in detection of prohibited items.



Add to Wishlist
Add to Wishlist

Description

Specification

Technical Specifications

  • Working principle : Electromagnetic
  • Materials : ABS (Acrylonitrile Butadiene styrene) raw materials
  • Frequencies : 0-100
  • Net weight : 21 KG
  • Gross weight : 27 KG
  • External size : 2165x828x349mm
  • Passage size : 2017x720x349mm
  • Working humidity : 99%, non-condensing
  • Working temperature : -20°C-65°C
  • Input : AC 100 V-240 V/ Frequency 50HZ-60HZ
  • Product colour : Matte Black
  • IP rating : 54 – [Dust proof coating]
  • Sensitivity adjustable : 0 – 400
  • Volume adjustable : 0 – 50
  • Alarm volume : 0 – 3 sec
  • Alarm tones : 15 different tone
  • Detection : Ferrous metals < 75gm
Features
Single detection zone
100 adjustable sensitivity  levels
Count statistics of alarms and people
Sound Alarm
Harmless to human body
Excellent anti-interference
