Swing flap barrier with 800mm passage space

Multilane Flap Barrier Systems

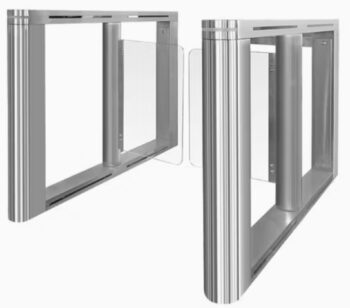

WSS-SB5M – Smart Elegant Flap Swing Type with Large Flaps

Supports All third Party Access Like QR code, RFID , Biometric, Face Recognition Readers
Display for statistics and numbers With voice and strobe light alerts
A combination of infrared sensors and police anti-illegal entry into pedestrian access
Double anti-clipping function, photocell anti-clipping and mechanical anti-clipping
The barrier can be set to delay closing in 1 ~ 60s after a valid access reading
Single passage in the set direction
Bi-directional single passage
Plastic toughened glass
Always free or locked

Download Catalogue

Add to Wishlist

Category: Swing Barrier

Description

Description

Technical Specifications

Passage width : 800 mm
Throughput rate : 20-25 p/m
Power supply : 220 ~ 240 V AC
Operational voltage : 24V DC
Max Power Consumption : 35 W
Frequency : 50 ~ 60hz
Protection Level (IP) : 55
Working temperature : -25°C ~ +70°C
Electro – magnetic drive : DC
Product Size: 1000*200*980mm
MCBF :5 million
