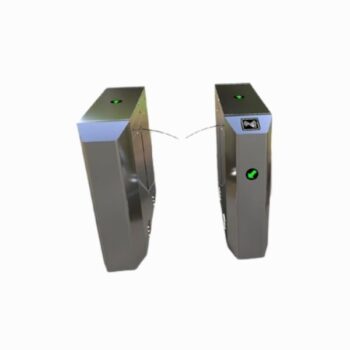

Single Core/Lane WSSFB5M

It is pedestrian barrier installed in conjunction with any access control system provides valuable assistance to security personnel at any monitored entrance. This is available as a single- or multiple-lane setup. Flap Barrier are compatible with most access control systems, such as magnetic, biometric and proximity readers. Its combine features like high throughput rate, user acceptance, comfort, attractive design and different levels of security to prevent unauthorized access pedestrian safety has also been taken into account.

Features:

  • Advanced Design: Its design includes an elegant style appearance; a stainless steel cabinet. Flap Barriers have PLC for rigorous logic; an advanced system of detection and tracking sensors. It is Installed along with hieroglyphic symbols both audio and visual alarms.
  • Finishing: The standard Flap Barrier is finished in brushed AISI 304 stainless steel and ACRYLIC arms. The top cover of the unit can be finished with marble, stainless steel or other materials, the color of arms can be optional for several color.
  • Hieroglyphic Symbols: This Flap Barrier equipped with two types of hieroglyphic symbols to inform authorization permission and access situation.
  • Detection Logic and Alarming: The standard Flap Barrier is equipped with several sets of detection cells on each side of unit. Flap Barrier has detection sensors which are positioned in manner that it detect intrusion most accurately Flap Barrier detects any intrusion, the alarming will be triggered. Flap Barrier can also have an audio and visual alarming with corresponding output.
  • User Safety: Flap Barrier has several sensors to detect obstructions during its movement. If an obstruction is detected during closing, the arms wing will stop its movement to prevent the user from being clamped.
  • Emergency: It is a fail safe security barrier. In case of power failure the arms will open automatically. It can be integrated with a Digital LED Counters, Fire alarm system or other alarming signal for emergency. It will open automatically in case of emergency.
  • Customized Finish: It is e available in various custom enclosures, as well as alternative colors and materials for arms.
Add to Wishlist
Add to Wishlist
Category:

Description

Technical Specifications:

Dimension in mm (W*L*H) 300 * 1000 * 980 (can be customized)
Material Body SS #304 with IP 44
Flap Acrylic ( Led Optional)
Passage width in mm 500mm
Motor 12-24V DC
Power Supply 220V/110V, 50/60Hz, 30Watts
Sensors A combination of infrared sensors and police anti-illegal entry into pedestrian access
Opening/closing  Time < 0.8 Sec with auto close through sensor
Throughput > 30 person per min
Direction Uni & BI Directional
Usage Indoor/Sheltered
Optional: Third Party Access Control (Integration) RFiD, Fingerprint/Face Recognition etc
 (Optional) Digital LED Counters, File Alarm Panel, Emergency Egress etc.
